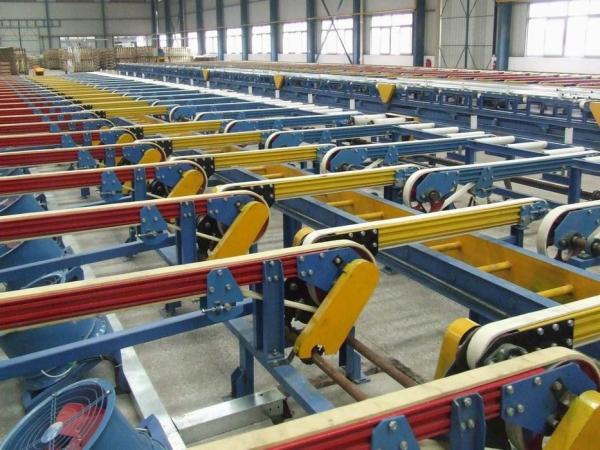

Customized Auto Handling Table For Aluminum Extrusion Belt Type / Transmission Type
Products Description
The equipment is used for transferring aluminum profile after
extrusion, it including products
conveying,pulling,straightening,gauging and cutting. It is easy
operation and efficiency
This equipment consists of initial lead table, roller sleeve
up-down conveyer (adjustable speed),
run-out transfer table (belt type), cooling table (belt
type),stretcher, stretcher transfer table(belt type),batching
table(belt type), saw transfer table (roller sleeve type), product
saw table, length gauge table, automatic control system.
It is used for550Ton-1800Ton aluminum extrusion press. Products are
not easily broken because it is conveyed by high temperature
resistance felt belt
Optional Item for extrusion handling table:
1, cooling system: air cooling or water cooling
2, hot saw: manual/automatic
3, puller: steel rope or chain driven type
4, conveyor type: belt type or transmission type
5. stretcher: pneumatic or hydraulic
6, length gauge: manual or automatic
Length | 36+12m |
Width | 7 m |
Distance from press center line to stretcher center line | to be defined |
Max sizing length | 9000mm |
Belt width | 80mm |
Total installation power | 72kw |
Compressed air | 0.75m3/h |
Main color | depends on buyer |
Product Features
1). Handling table used for profile out, cooling ,storage and
profile length sized.
Including initial table, handling table, profile take out table,
cooling table, profile transmission table, stretcher,storage table,
saw table, finished saw, length sized table, electrical control
system etc. Four level transmission.
2). Handling table and sawing table roller 's table is welded by
high strength plate
3). Lifter of handling table and sawing table adopts sloping
sliding lifting ,reasonable structure, high efficiency, beautiful
surface
4). Profile runout table, cooling table, transmission table,
storage table is ringlike transmission, transmission roller use
double shaft design, let each ringlike belt can change individual,
easy for maintenance. The aluminum beam is fixed on rack, at the
end of aluminum beam, do not use big plywood ,less wearing parts,
more reasonable design, easy maintenance.
5). Length sized trolley use special linear sliding seat ,walking
on round steel rail, sliding seat at 260°angle to lock rail,
avoiding trolley damage because of profile collide.
FAQ
1. What's the delivery time of your aluminum extrusion machine?
For ordinary small-sized machine such as saw, 30 days;
middle-sized machine such as heating furnace, 45-50 days, for
big-sized machine such as cooling system/profile handling system,
60
days. We could also design and make the whole production line for
our customer, around 3-6 months.
2. What’s your ordinary shipment method?
We can deliver the machine by land, or by ocean.
